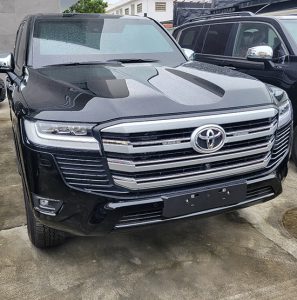

The Armored Land Cruiser: Luxury and security combined
An armored Toyota Land Cruiser developed by Harrow Security is rated B6 Level according to European Ballistic Standards CEN 1522/23 and CEN 1063. Our opaque armouring materials are rated FB6 Level and our transparent armouring materials are rated BR6 Level.
High quality bullet proof steel and glass reinforce all four sides of the passenger compartment, including the roof. The armouring is designed according to CEN1063 and CEN1522 to repel 7.62x51mm M80 Nato Ball ballistics (U.S. NIJ level III, CEN level FB6/BR6) and 5.56×45 SS109 ammunition (CEN level FB5/BR5 and FB6/BR6) at 0° angle of incidence, with a distance of 10 metres.
Opaque Areas of the Land Cruiser:
All opaque areas of the bulletproof Land Cruiser are reinforced to repel weapons and ammunition of the following calibre or less at a 90° impact angle.
• Calibre 7.62 x 39 mm, FJ/PB/FeC, AK 47 Kalashnikov
• Calibre 5.56 x 45 mm, FJ/PB/SCP, M16 Colt
• Calibre 7.62 x 51 mm, FJ/PB/SC, (FN) “FAL” / “LAR” NATO rifle
Transparent Areas of the Land Cruiser:
All transparent areas of the bulletproof Land Cruiser are reinforced with multiple layers and polycarbonate coat to repel weapons and ammunition of the following calibre or less at a 90° impact angle.
• Calibre 7.62 x 39 mm, FJ/PB/FeC, AK 47 Kalashnikov
• Calibre 5.56 x 45 mm, FJ/PB/SCP, M16 Colt
• Calibre 7.62 x 51 mm, FJ/PB/SC, (FN) “FAL” / “LAR” NATO rifle
Floor (Enhanced Floor Protection)
The floor is designed to withstand the destructive force of the following explosives:
• Two DM 51 hand grenade (German Norm) detonated simultaneously
• 1x HG85 (equivalent to M67 Grenade) under vehicle
In addition, the floor is also armoured to withstand the detonation of anti-personnel mines. Roof (Enhanced Roof Protection)
The roof is designed to withstand the destructive force of the following explosives:
• 2x DM51 Hand Grenade detonated directly on the surface
• 1x HG85 Hand Grenade (Equiv. to M67 Grenade) detonated directly on the surface
• 2x HG85 Hand Grenades (Equiv. to 2xM67 grenades) detonated directly on the surface
